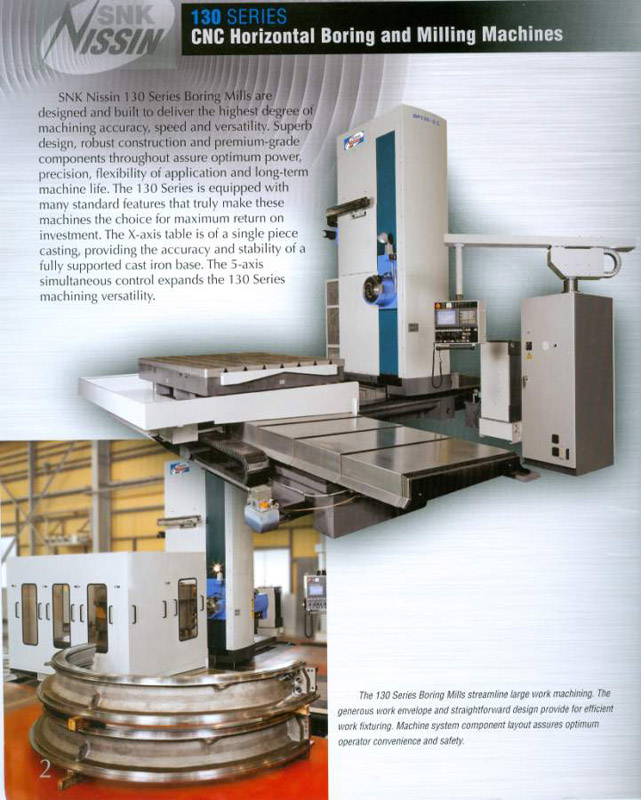

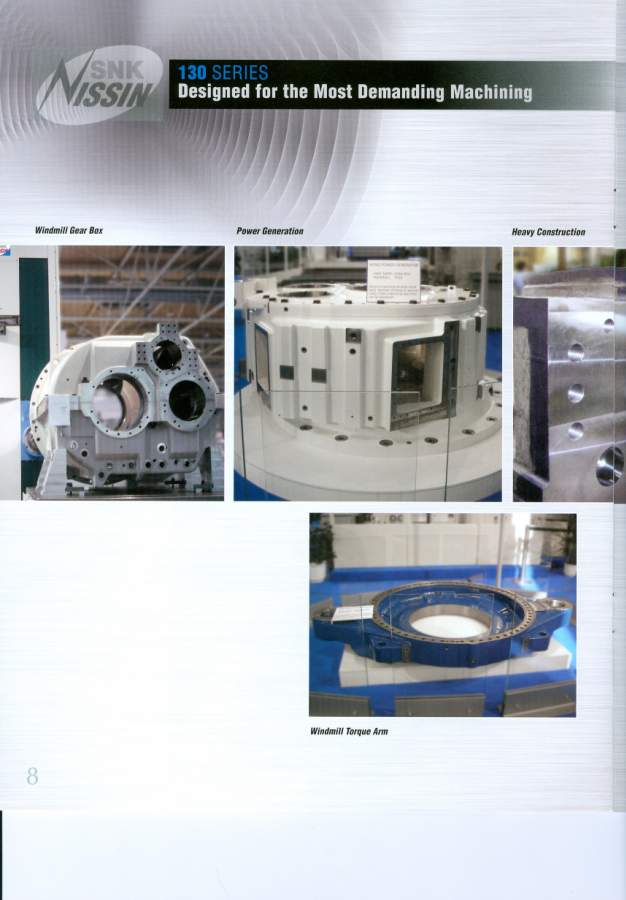

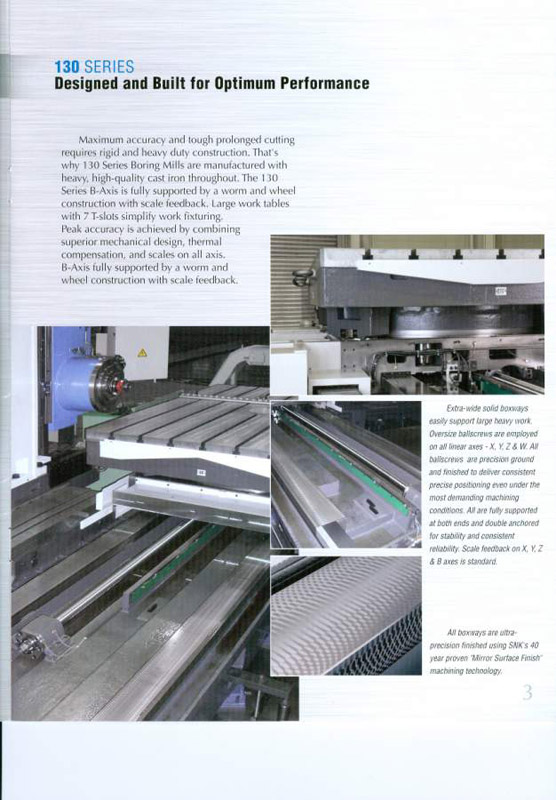

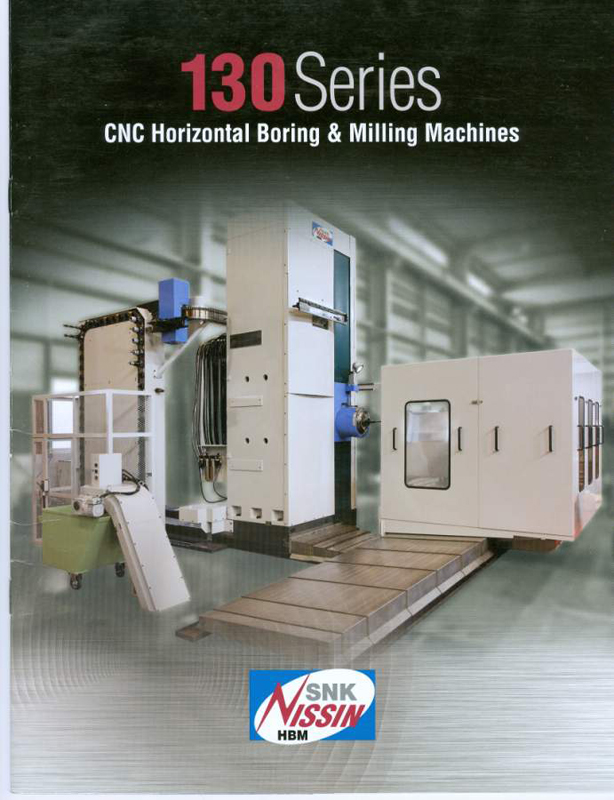

CNC HORIZONTAL BORING & MILLING

SNK Nissin BP130-3.5
[view 1 2 3 4]

Travel Distance
x-118”(3000mm)
y-79”(2000mm)
z-63”(2500mm)

CNC LATHES

Okuma LC 30
[view]
20” dia x 38” long

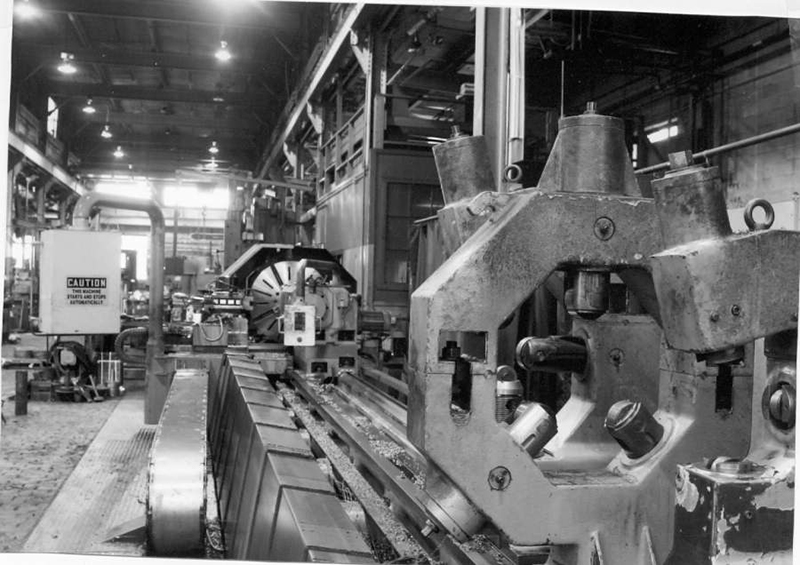

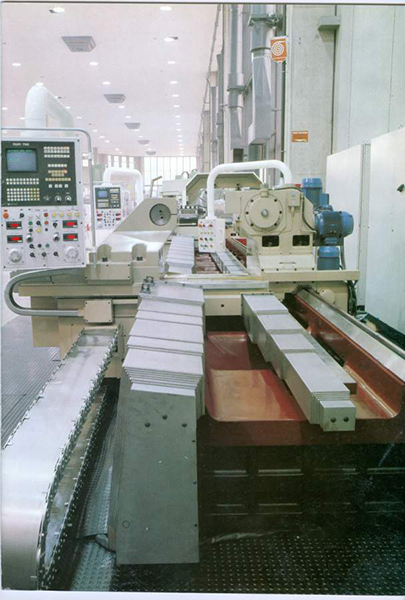

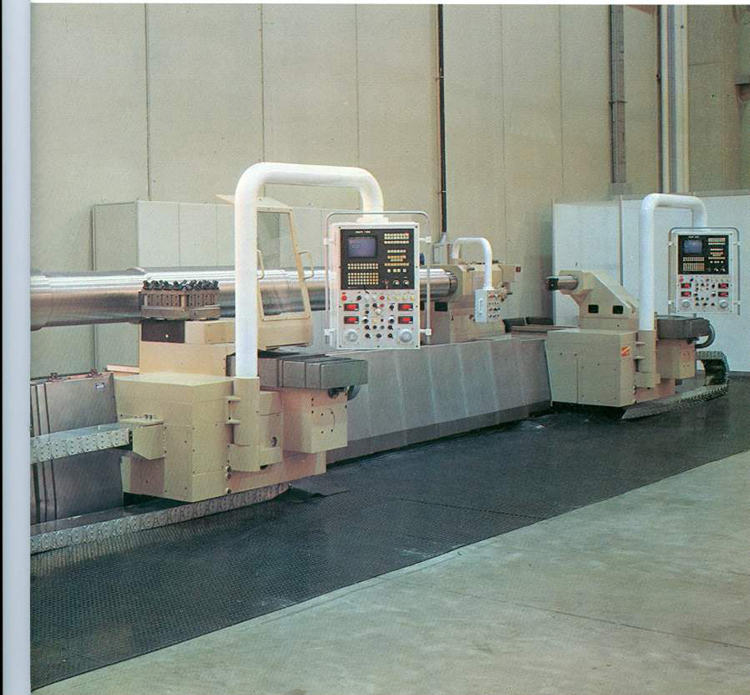

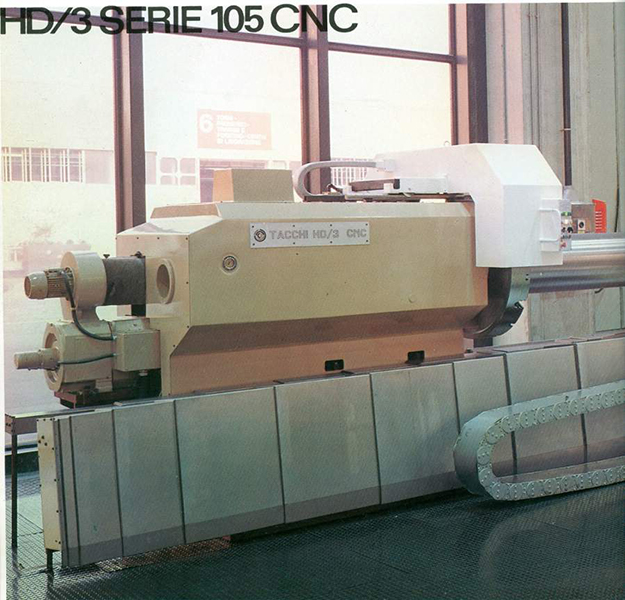

Tacchi HD/3 series 105
[view 1 2 3 4]
47” dia x 23’ long
34” over saddle, up to 18” dia steady rest

CNC MILLING

Burgmaster
30”x 18”y 15”z

ENGINE LATHES

American
45” dia x 25’ long,
26” dia over
saddle, up to 19” dia
steady rest

Monarch
30” dia x 22’ long

Lodge & Shipley
24-5/8” dia x 78” long

South Bend
13” dia x 40” long

Monarch-Tracer Lathe
24 ½” dia x 126” long

TURRET LATHE

Jones & Lamson-No. 5
13” x 24"

MILLING MACHINES

OKK Model MH-SP
36” Horizontal Travel,
15” Vertical Travel, 11” Cross Travel

Bridgeport Series I:
2 HP

VERTICAL SAWS

Marvel Series 25
28” high x 24 ½”deep
60 degree adjustable miter
cutting

Marvel Series 81
21” high x 19” deep
60 degree adjustable miter cutting

Plate Saw
22 ½” H x 29” W x 72” table travel

DoAll 3618-3
36”W x 18”H

DoAll 2612
26”W x 12”H

DoAll 26-2
26”W x 12”H

HORIZONTAL SAWS

(2) Marvel Series 15
15 ½”H x 18 ¾”W
Both with automatic feed

(1)Marvel Series 15
15 ½”H x 18 ¾”W
Manual feed

RADIAL DRILLS
(Dimensions in "Arm" and "Column Spindle")

American Hole Wizard
72”...17”

American Hole Wizard
72”...15”

American Hole Wizard
48”...11”

HORIZONTAL BORING MILLS

(2)Giddings & Lewis
60” x 120” Table
5” spindle, 120” Face to Outer Bearing
Rotary Table

(1)Giddings & Lewis
48” x 72” Table
3” Spindle, 110” Face to Outer Bearing

VERTICAL BORING MILLS

(Dimensions in order of Swing,
Table then Height)

Niles
126” 99” 66”

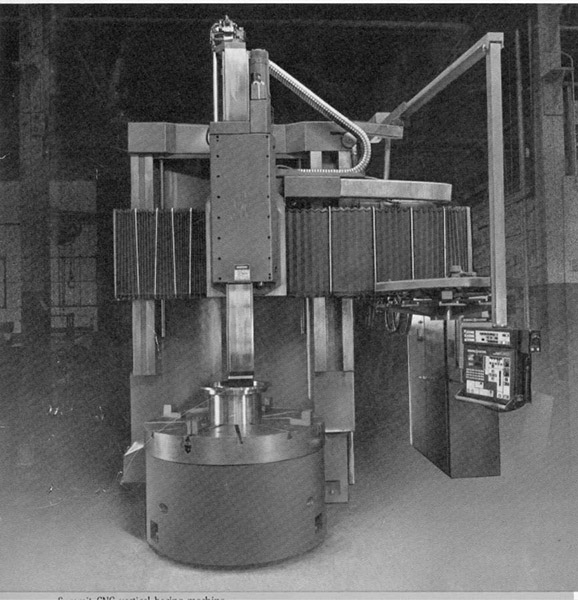

Summit (CNC)
[view]
70” 60” 56”

Bullard
(Swing, height)
52” 38”

Bullard
(Swing, height)
36” 60”

HYDRAULIC PRESSES

Rodgers
300 Ton, 6’ wide x 16’ long,
Horizontal

K.R. Wilson
50 Ton, 30” x 46”, Vertical

SURFACE GRINDER

Norton
6” x 18” Magnetic Plate, 9” Height

KEYSEATER

Mitts & Merrill
24” stroke x 2” Width

CRANES

Shop Interior:
    (1) 5 Ton Bridge Crane-Shepard-Niles
    (2) 10 Ton Bridge Crane-Shepard-Niles
    (1) 15 Ton Bridge Crane-Whiting

Outside Loading Area:
(1) 10 Ton Bridge Crane-
Shepard-Niles

OTHER EQUIPMENT

(5) Drill Presses
Abrasive Wheel Cutoff
Drill Pointer
Pak 5 Thermo Dynamic Plasma Cutter
Airco Mig Welder
